제품 세부 정보
원래 장소: 중국
브랜드 이름: DST
인증: CE Rosh

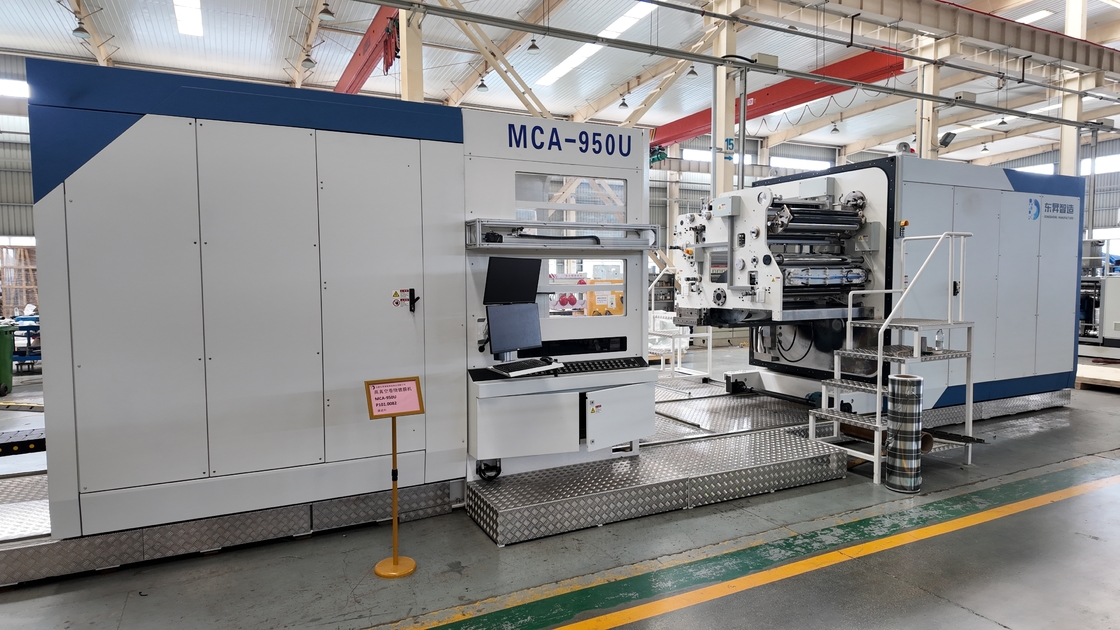

모델 번호: MCA-950U
지불 및 배송 조건
최소 주문 수량: 1 세트
가격: Based on Specification
포장 세부 사항: 나무 케이스
배달 시간: 약 5 개월
지불 조건: t/t
공급 능력: 6 개월 만에 5 세트
기판: |
CPP, PET, BOPP |
기판 폭: |
최대 1300mm |
기판 두께: |
0.1μm-1.6μm |
코팅 재료: |
al.ly; zn., al.etc |
가열 방법: |
증발 |
전원 공급 장치: |
C380V 50Hz + PE |
코팅 속도: |
맥스. 21m/s |
코어 직경 (내부): |
75mm 또는 13mm |
핵심 자료: |
금속, 플라스틱, 함침 종이 등 |
핵심 구성 요소: |
PLC, 엔진, 모터 등 |
색상: |
사용자 정의 |
코팅 필름: |
BOPP/PET/CPP 등 |
유형: |
코팅 생산 라인 |
기판: |
CPP, PET, BOPP |
기판 폭: |
최대 1300mm |
기판 두께: |
0.1μm-1.6μm |
코팅 재료: |
al.ly; zn., al.etc |
가열 방법: |
증발 |
전원 공급 장치: |
C380V 50Hz + PE |
코팅 속도: |
맥스. 21m/s |
코어 직경 (내부): |
75mm 또는 13mm |
핵심 자료: |
금속, 플라스틱, 함침 종이 등 |
핵심 구성 요소: |
PLC, 엔진, 모터 등 |
색상: |
사용자 정의 |
코팅 필름: |
BOPP/PET/CPP 등 |
유형: |
코팅 생산 라인 |
| Attribute | Value |
|---|---|
| Substrate | CPP, PET, BOPP |
| Substrate Width | max. 1300mm |
| Substrate Thickness | 0.1μm-1.6μm |
| Coating material | Al. only; Zn., Al. etc |
| Heating method | Evaporation |
| Power supply | AC380V 50Hz + PE |
| Coating speed | max. 21 m/s |
| Core diameter (inside) | 75 mm or 13 mm |
| Core material | metal, plastic, impregnated paper etc |
| Core Components | PLC, Engine, Motor, etc |
| Color | customized |
| Coating Film | BOPP/PET/CPP etc |
| Type | Coating Production Line |
MCA-650 CNC High Vacuum Metallizing Machine adopts internationally advanced technology design, enabling continuous one-sided aluminum and aluminum/zinc metallization on plastic films such as PET and OPP, to form the desired metallized film products.
The powerful, robust evaporation source with a staggered ceramic boat arrangement provides excellent coating uniformity, with coating thickness uniformity below ±5% guaranteed.
Substrates, in particular low tension or heat sensitive films such as CPP and PE, benefit from our Free Span Metallizer. Our design avoids large thermal gradient between the cooled process drum and the hot film surface, and reduces radiant heat, solving most intractable problems like light line, wrinkle, spatter and micro-cracking. Consequently, both functional and aesthetic performances of coated film are improved.
Inverter Frequency Control and the short pump tube in the Vacuum System minimize pumping time. There are no edge shields to adjust and clean, nor drum to clean, dramatically increasing productive time.
| Substrate | CPP, PET, PI, etc. |
| Substrate Width | max. 1200mm |
| Substrate thickness | 0.1μm-1.5μm |
| Heating method | Evaporation boat |
| Power supply | AC380V 50Hz + PE |
| Core material | metal, plastic, impregnated paper |
| Core diameter (inside) | 76 mm or 152 mm |
| Coating material | Al. only; Zn., Al. |
| Kind of coating | One side |
A: Dongsheng is a factory.
A: Our factory is located in Hefei, Anhui, China. Welcome to visit our factory.
A: We provide 12 months warranty and lifetime technical support for all machinery. The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
A: TT 30% down payment, 70% before shipment.
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
A: Each process will be tested by our inspection department to make sure the product quality.
